Mucociliary clearance before and after endonasal sinus surgery for chronic rhinosinusitis with and without nasal polyps
Boris R. Haxel1,2, Niki Karaiskaki2, Patrick Boessert1,2, Kai Fruth2
1MD, Department of Otolaryngology, Head and Neck Surgery, AMEOS Klinikum Haldensleben, Germany.
2MD, Department of Otolaryngology, Head and Neck Surgery, University Medical Center of the Johannes Gutenberg University Mainz, Germany.

Article ID: 100008O04BH2017
doi:10.5348/O04-2017-8-OA-1

Address correspondence to:
Boris R. Haxel
Department of Otorhinolaryngology, Head and Neck Surgery
AMEOS Klinikum Haldensleben
Kiefholzstr 27, D-39340 Haldensleben
Germany

Access full text article on other devices

  Access PDF of article on other devices

[HTML Abstract]   [PDF Full Text] [Print This Article]
[Similar article in Pumed] [Similar article in Google Scholar]

How to cite this article
Haxel BR, Karaiskaki N, Boessert P, Fruth K. Mucociliary clearance before and after endonasal sinus surgery for chronic rhinosinusitis with and without nasal polyps. Edorium J Otolaryngol 2017;3:1–7.


Abstract
Aims: Mucociliary function is an important protective mechanism of the nasal mucosa that comprises cilia motility and the consistency of the nasal mucus. This study intended to investigate this feature and how it changes following functional sinus surgery (FESS) for chronic rhinosinusitis (CRS) with (CRSwNP) and without (CRSsNP) nasal polyps, in comparison to other parameters associated with this disease.
Methods: In 37 patients with CRS±polyps, the saccharin transit time (STT) was measured prior to FESS, as well as two weeks after and six months after. Other parameters like SNOT-20 scores, olfaction, CT and endoscopy scores were also evaluated.
Results: There was an insignificant preoperative difference in STT between the CRS subgroups with or without polyps (23.1 and 15.6 minutes respectively). There was also no statistical difference in terms of gender, preoperative CT score or previous surgery, nor was there any correlation with other parameters (like SNOT-20, olfaction and endoscopy score). Two weeks following FESS, a strong trend towards increased STT values (26.4±17.7 minutes, p = 0.051) and a decrease six months later (19.8±14.2 minutes, p = 0.16) were observed. Although other parameters like SNOT-20 scores, olfaction and endoscopy scores showed significant improvement, no correlation with the changes in STT was noticed.
Conclusion: In CRS with or without nasal polyps, STT seems to be an inappropriate parameter for estimating the efficacy of FESS. The changes in STT do not correlate with other indicators for successful surgery like increased SNOT-20 or olfaction scores. STT was independent of other factors like gender, CT-score, previous surgery and polyp status. However, CRSwNP patients showed higher STT values.

Keywords: CRS, FESS, polyps, Saccharin Transit Time


Introduction

Mucociliary clearance (MCC) plays an important role as a defence mechanism of the nasal mucosa. Bacterial or viral pathogens can be transported to the pharynx by this mechanism. Two components must be taken into account, these being the consistency of the mucus and ciliary beat frequency. The determination of the saccharin transit time (STT) has been established as a simple means of evaluating MCC [1] in everyday practice. In healthy subjects, STT is considered normal if it falls in the range of between 7 to 15 minutes [2]. Some studies show an improvement in MCC after septal surgery [3] or irrigation therapy [2], while others do not [4]. Chronic rhinosinusitis (CRS) is a multi-factorial disease that can be divided into subgroups: without (CRSsNP) and with polyps (CRSwNP). The treatment can be either medical or surgical. The influence of CRS and the impact of sinus surgery on MCC are still not well analyzed. One former study [5] showed a significantly longer STT in CRS patients compared to control groups and a significant reduction of STT up to a year after surgery. The aim of this study was to investigate MCC in CRS patients with and without polyps, to describe postsurgical changes and to look for correlations with other parameters.


Materials and Methods

This study was conducted at the Department of Otolaryngology, Head and Neck Surgery of the Johannes Gutenberg University, Mainz, Germany as a tertiary medical centre. In a prospective clinical study, patients of both genders and over 18 years of age, who were scheduled for FESS because of CRS, were included. Cases of primary and revision surgery were included. All patients had undergone unsuccessful conservative treatment prior to the operation. The diagnosis of CRS was established by the patient's history, nasal endoscopy and computed tomography (CT) scan of the paranasal sinuses according to the EPOS criteria [6]. All patients have signed an informed consent form prior to their participation in the trial.

Exclusion criteria were single-sided CRS, cystic fibrosis, immunodeficiency, primary cilia dysfunction and concomitant medication with drugs interacting with human cilia function.

Patients were examined prior to surgery, as well as two weeks following and six months following. To evaluate the nasal ciliary clearance, measurement of the STT was performed as described earlier [7] [8]. This method uses a small particle of saccharine that is placed unilaterally on the head of the inferior nasal turbinate. The time between placement and the patient first reporting the perception of sweetness is recorded. If more than 60 minutes elapsed without the patient indicating a sweet taste, the measurement was stopped and 60 minutes were recorded as the STT. Additionally, before and after surgery the sino-nasal outcome test (SNOT-20) was used to evaluate disease-specific quality of life [9]. This score comprises a list of 20 problems and patients are asked to rate each problem between 0 (no problem) and 5 (as bad as it can be) points. The entire score can reach values between 0 to 100 points. The German-adapted version was used in this trial [10]. The subjective severity of nasal disease (SSND) was also sought. According to the international guidelines, the patients were asked "How troublesome are your symptoms of rhinosinusitis?" and, using a visual analogue scale (VAS) 10 centimetres in length, they then had to mark the extent of their overall nasal condition with scores between 0 (representing "not troublesome") and 10 ("worst thinkable"). The SSND score was adapted to the 2012 EPOS guideline and the complaints could then be divided into mild, moderate or severe. Olfaction was evaluated before and after surgery by the 16-item Sniffin' Sticks identification test. This test consists of 16 odors that are stored in a pen-like device. After placing each pen under the patient's nose for one second, they must then choose one of four presented answers in a forced choice manner [11]. The endoscopy score before and after surgery was classified after rigid nasal endoscopic assessment based on three different scores: mucosal swelling (0=no swelling, 1=mild swelling, 2=severe swelling), mucosa color (0= pale, 1= red), secretion (0=normal, 1=watery, 2=mucoid, 3=purulent) and the appearance of polyps (0=absent, 1=present) for each side separately. The average of both sides was documented and the maximum possible score was seven. Finally, the Lund-Mackay CT score [12] was determined for each patient by reviewing the preoperative CT scan. After the surgery, all patients used nasal irrigation with saline at least twice a day. Two weeks after surgery, treatment with a topical nasal steroid (fluticasone furoate) once a day (27.5 µg) was continued for the entire study period.


Statistical Analysis

All analyses were performed using version 12.0 of the Statistical Package for the Social Sciences software system (SPSS Inc., Chicago, Illinois). The mean values are shown ± standard deviation. To evaluate changes in STT between different time points, the Wilcoxon signed-rank test was used. Influences of different parameters on STT preoperatively were evaluated using the Mann-Whitney U test. The level of significance was set at p<0.05. To test for correlations, ordinal scale relationships using Spearman's rank correlation coefficient were employed.


Results

Thirty-seven patients were recruited; their mean age was 50.7 years. The gender distribution was 20 male and 17 female patients. Fourteen patients suffered from CRSsNP and 23 from CRSwNP. Twenty-one patients were sinus revision cases and 16 underwent primary sinus surgery (Table 1).

Alteration of Stt
Before the operation, the mean STT was 20.3±15.7 minutes, 26.4±17.7 minutes two weeks following and 19.8±14.2 minutes six months following FESS. The increase in STT after two weeks was almost significant (p = 0.051). There was no statistical difference between the CRSwNP and CRSsNP group (p>0.16) (Table 2). The differences between the time points also showed no significance (p>0.1). Prior to surgery, there were no significant correlations between STT and other parameters in the whole CRS group (age, gender, SNOT-20, CT score). In the CRS ± polyps subgroups, STT before surgery in the CRSwNP group was 23.1 minutes and 15.6 minutes in CRSsNP patients, but this difference was not significant (p=0.28). Interestingly, STT showed a good correlation with SNOT-20 in the CRSsNP subgroup, but not in the CRSwNP subgroup (correlation coefficient 0.70, p=0.01), (Figure 1). The mean increase in STT two weeks after surgery was 6.01 ± 19.2 minutes, which was followed by a decrease of 6.5±23.8 minutes after six months. These changes showed no differences between the subgroups with or without polyps, low or high CT score, gender or previous surgery.

Development of other parameters
The mean SNOT-20 scores decreased significantly from the period prior to surgery (27.5±15.7) to the periods of two weeks (20.7±12.2, p<0.01) and six months after surgery (14.9±14.1, p < 0.01) (Figure 2A). The CRS subgroups with or without polyps showed similar significant results (data not shown). The SSND score decreased from 7.64±2.0, to 3.87±2.6, to 2.56±2.1 over time. These changes were all significant (0.0001 < p < 0.024) and this was true for both subgroups, with or without polyps. In the CRSsNP and CRSwNP subgroups, these values were also significantly reduced at all-time points, except for two weeks after surgery in the CRSsNP subgroup (Figure 2B). The Sniffin' Sticks scores increased from 8.88±4.2, to 10.31±3.6 and to 10.83±3.4 six months after surgery. These findings were significant for the changes between the period prior to surgery and the results after six months (p=0.008). Concerning the polyp status, this was only true for the CRSwNP subgroup after six months (p=0.032) (Figure 2C). The endoscopy score of the overall group decreased from 3.19±1.2, to 2.43±1.4 and to 1.86±1.6; the differences reached significance after two weeks (p=0.018) and six months (p=0.03). With regard to the subgroups, this could only be confirmed for CRSwNP patients (Figure 2D).

Reasonable correlations were found for SNOT-20 and SSND-Scores at two weeks postoperative (correlation coefficient = 0.49, p=0.002) and the six-month postoperative assessment (correlation coefficient = 0.74, p<0.001), but not prior to surgery (correlation coefficient = 0.30, p = 0.09) (Figure 3).

Cursor on image to zoom/Click text to open image

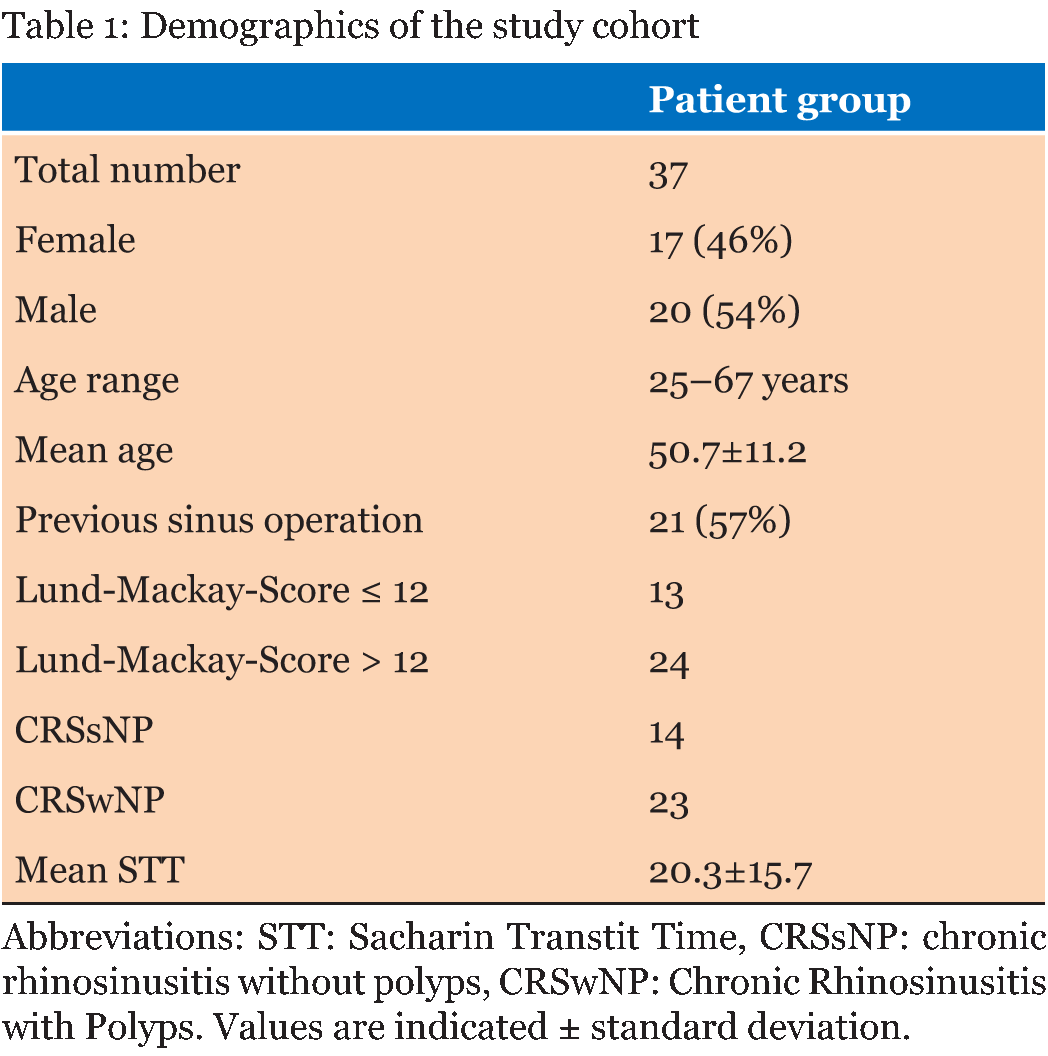

Table 1: Demographics of the study cohort


Cursor on image to zoom/Click text to open image

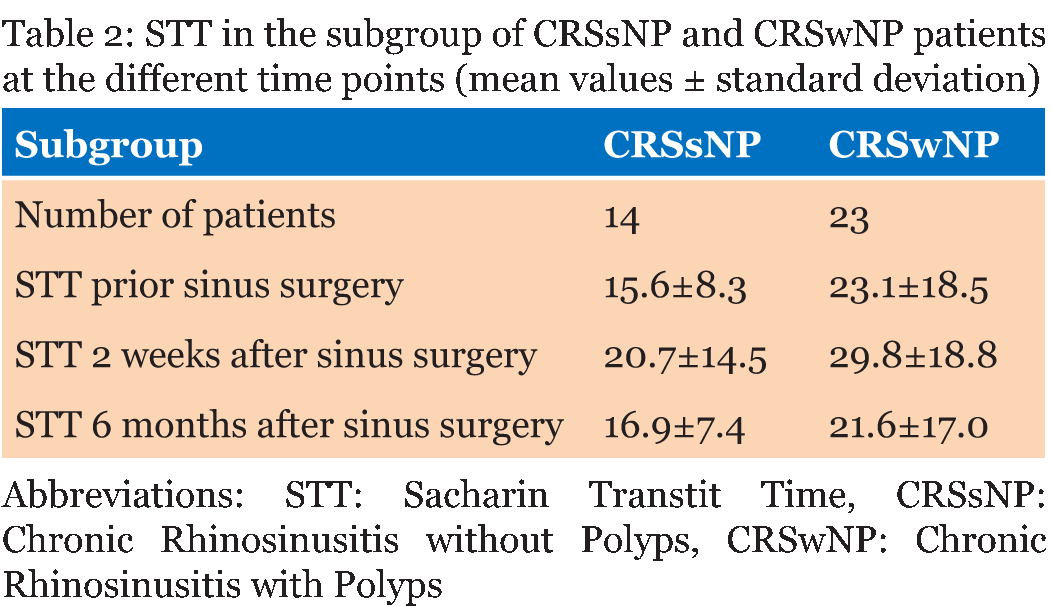

Table 2: STT in the subgroup of CRSsNP and CRSwNP patients at the different time points (mean values ± standard deviation)


Cursor on image to zoom/Click text to open image
Figure 1: Correlation of saccharin transit time (STT) and SNOT-20 score before surgery in the CRSsNP-group.


Cursor on image to zoom/Click text to open image
Figure 2: Box plots of the results of (A) SNOT-20 Scores (B) Scores of Severity of nasal disease (SSND) (C) Sniffin' Sticks Scores and (D) Endoscopy Score before surgery (V1), 2 weeks after surgery (V2) and 6 months after surgery (V3) in the whole group (n=37) or in patients with chronic rhinosinusitis without nasal polyps (CRSsNP) and with polyps (CRSwNP). The boxes include 75% of values, the median is indicated and outliers (?). Significant changes are indicated by "*".



Cursor on image to zoom/Click text to open image

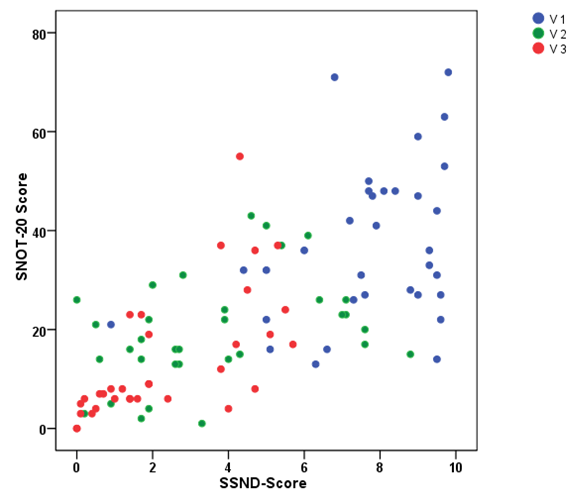

Figure 3: Correlation of SNOT-20 scores and the score of the "Severity of Nasal Disease" (SSND) before surgery (blue), 2 weeks after surgery (green) and 6 months after surgery (red).



Discussion

Mucociliary clearance is an important factor in chronic nasal disease, or may even be a causative factor. The mucociliary clearance was assessed in our cohort by measuring STT. The mean STT in our cohort of patients with CRS was more than 15 minutes which is regarded as the maximum value in normal subjects [7]. Only 11 individuals in our study reached values of less than 15 minutes, indicating a dysfunction of MCC in the majority of patients with CRS. On may speculate that a reduced MCC might be causative or supports the development of CRS in individuals or the chronic inflammatory disease influences MCC by released cytokines.

We have only seen a trend towards higher preoperative STT values in CRSwNP patients in comparison to the CRSsNP subgroup. Sigh et al. described an increasing STT for more severe forms of CRS (single-sided versus bilateral and CRSsNP/CRSwNP [13]) and we have also seen maximum preoperative STT values of 40 minutes in the CRSsNP subgroup, whereas in the CRSwNP subgroup, four patients reached a value of 60 minutes.

The increased STT prior to operation was accompanied by a high impairment in the SNOT-20 score in the patients without polyps, indicating a close correlation between reduced MCC and subjective complaints in this subgroup.

Two weeks after surgery, we found a non-significant increase in STT in both subgroups (CRSsNP and CRSwNP), which is similar to the results of Gelardi et al. after four weeks in the group rinsing with saline after FESS [14]. This increase in STT could be the result of the acute surgical trauma. Six months after surgery, the patients in our cohort returned to their preoperative STT levels and it can be stated that neither surgery nor medical treatment with nasal topical steroid had a positive effect on STT. Maybe rinsing with sodium hyaluronate or using dexpanthenol spray after FESS might show better results as described in earlier publications [5] [14] [15].

If the activity of cilia is regarded, and not STT, other studies have found decreased cilia beat frequencies (CBF) in CRSsNP patients and could measure an increase of CBF after FESS to normal values after six months (from 7 to 11.5 Hz) [16]. In another study that investigated CBF and STT in patients with extensive CRS [17], an improvement of STT to 13.8 minutes was measured seven months after sinus surgery in those without recurrent disease, in comparison to those experiencing relapse (20.6 minutes). CBF, on the other hand, remained reduced (8.3 ± 1.2 Hz) compared to normal controls (9.5 ± 1.7 Hz). It is therefore unclear whether a positive effect of surgery in CRS is due to improved cilia activity or improved mucus (composition) drainage.

In our study, patients with polyps showed a trend towards prolonged STT values compared to patients with CRS without polyps; this is comparable to the results of Singh et al. [13], but in our study the changes between the time points did not differ between the subgroups. The statistically unchanged STT before, two weeks and six months after surgery was independent of other quality of life parameters, like SNOT-20, VAS or olfaction, which all showed significant improvements.


Conclusion

Although most parameters after functional sinus surgery (FESS) for chronic rhinosinusitis (CRS) showed improvement after two weeks or at least six months after surgery, saccharin transit time (STT) showed stable values over the entire study period after a non-significant increase at the two-week time point. Although the CRSwNP subgroup showed a trend towards longer STT at all time points, the changes reached no statistical significance. It is therefore doubtful whether STT is a reliable parameter for postsurgical follow-up after FESS.


References
  1. Andersen I, Camner P, Jensen PL, Philipson K, Proctor DF. A comparison of nasal and tracheobronchial clearance. Arch Environ Health 1974 Nov;29(5):290–3.   [CrossRef]   [Pubmed]    Back to citation no. 1
  2. Bencova A, Vidan J, Rozborilova E, Kocan I. The impact of hypertonic saline inhalation on mucociliary clearance and nasal nitric oxide. J Physiol Pharmacol 2012 Jun;63(3):309–13.   [Pubmed]    Back to citation no. 2
  3. Dalgic A, Is A, Dinc ME, Ulusoy S, Avinçsal MÖ, Kulekci M. The effects of nasal packing and transseptal suturing after septoplasty on olfactory function, patient comfort, and mucociliary clearance. J Craniofac Surg 2016 Jul;27(5):e487–90.   [CrossRef]   [Pubmed]    Back to citation no. 3
  4. Berkiten G, Kumral TL, Saltürk Z, et al. Effect of deviated nasal septum type on nasal mucociliary clearance, olfactory function, quality of life, and efficiency of nasal Surgery. J Craniofac Surg 2016 Jul;27(5):1151–5.   [CrossRef]   [Pubmed]    Back to citation no. 4
  5. Min YG, Yun YS, Song BH, Cho YS, Lee KS. Recovery of nasal physiology after functional endoscopic sinus surgery: Olfaction and mucociliary transport. ORL J Otorhinolaryngol Relat Spec 1995 Sep–Oct;57(5):264–8.   [CrossRef]   [Pubmed]    Back to citation no. 5
  6. Fokkens WJ, Lund VJ, Mullol J, et al. EPOS 2012: European position paper on rhinosinusitis and nasal polyps 2012. A summary for otorhinolaryngologists. Rhinology 2012 Mar;50(1):1–12.   [CrossRef]   [Pubmed]    Back to citation no. 6
  7. Rutland J, Cole PJ. Nasal mucociliary clearance and ciliary beat frequency in cystic fibrosis compared with sinusitis and bronchiectasis. Thorax 1981 Sep;36(9):654–8.   [CrossRef]   [Pubmed]    Back to citation no. 7
  8. Majima Y, Sakakura Y, Matsubara T, Murai S, Miyoshi Y. Mucociliary clearance in chronic sinusitis: Related human nasal clearance and in vitro bullfrog palate clearance. Biorheology 1983;20(2):251–62.   [Pubmed]    Back to citation no. 8
  9. Piccirillo JF, Merritt MG Jr, Richards ML. Psychometric and clinimetric validity of the 20-item sino-nasal outcome test (SNOT-20). Otolaryngol Head Neck Surg 2002 Jan;126(1):41–7.   [CrossRef]   [Pubmed]    Back to citation no. 9
  10. Baumann I. Validated instruments to measure quality of life in patients with chronic rhinosinusitis. [Article in German]. HNO 2009 Sep;57(9):873–81.   [CrossRef]   [Pubmed]    Back to citation no. 10
  11. Wolfensberger M, Schnieper I, Welge-Lüssen A. Sniffin'Sticks: A new olfactory test battery. Acta Otolaryngol 2000 Mar;120(2):303–6.   [CrossRef]   [Pubmed]    Back to citation no. 11
  12. Lund VJ, Mackay IS. Staging in rhinosinusitus. Rhinology 1993 Dec;31(4):183–4.   [Pubmed]    Back to citation no. 12
  13. Singh M, Chandra M, Gupta SC, Sharma D. Role of measurement of nasal mucociliary clearance by saccharine test as a yard stick of success of functional endoscopic sinus surgery. Indian J Otolaryngol Head Neck Surg 2010 Sep;62(3):289–95.   [CrossRef]   [Pubmed]    Back to citation no. 13
  14. Gelardi M, Guglielmi AV, De Candia N, Maffezzoni E, Berardi P, Quaranta N. Effect of sodium hyaluronate on mucociliary clearance after functional endoscopic sinus surgery. Eur Ann Allergy Clin Immunol 2013 May;45(3):103–8.   [Pubmed]    Back to citation no. 14
  15. Tantilipikorn P, Tunsuriyawong P, Jareoncharsri P, et al. A randomized, prospective, double-blind study of the efficacy of dexpanthenol nasal spray on the postoperative treatment of patients with chronic rhinosinusitis after endoscopic sinus surgery. J Med Assoc Thai 2012 Jan;95(1):58–63.   [Pubmed]    Back to citation no. 15
  16. Abdel-Hak B, Gunkel A, Kanonier G, Schrott-Fischer A, Ulmer H, Thumfart W. Ciliary beat frequency, olfaction and endoscopic sinus surgery. ORL J Otorhinolaryngol Relat Spec 1998 Jul-Aug;60(4):202–5.   [CrossRef]   [Pubmed]    Back to citation no. 16
  17. Hafner B, Davris S, Riechelmann H, Mann WJ, Amedee RG. Endonasal sinus surgery improves mucociliary transport in severe chronic sinusitis. Am J Rhinol 1997 Jul-Aug;11(4):271–4.   [CrossRef]   [Pubmed]    Back to citation no. 17
